8 Inch Portable Plate Shot Blasting Machines
InnovatorTM Portable machines are suited for small to large steel blasting projects.
Blasting width are available 8 to 31 inch (200 to 800 mm).
8 inch (200 mm), 22 inch (550 mm) and 31 inch (800 mm) blasting width are most popular types.

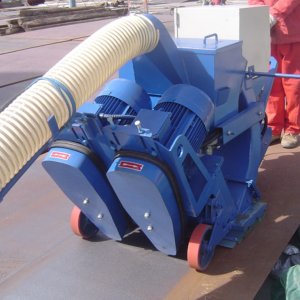

InnovatorTM JM200 holds 8 inch blasting width with lastest DustmanTM dust collector.
This machine is capable of preparing steel surfaces such as petrochemical or water storage tank floors and roofs, ship decks, barges and other marine vessels, hatch covers, bridge decks, and offshore drilling platforms.
Prepares up to 520 ft2/hour (50 m2/hour).
High level of operator comfort.
Electrical drive system.
Ideal for tank blasting.
Abrasive consumption less than 0.03 lb/ft2 (160 g/m2).
| Type | JM200 | JM550 | JM800 |
| Blasting width | 8 inch (200 mm) | 22 inch (550 mm) | 31 inch (800 mm) |
| Blasting capacity | 520 ft2/h (50 m2/h) | 1300 ft2/h (120 m2/h) | 2080 ft2/h (190 m2/h) |
| Blast motor | 1*15 hp (1*11 kw) | 2*15 hp (2*11 kw) | 2*20 hp (2*15 kw) |
| Travel speed | 49 ft/min (15 m/min) | ||
| Dust hose connection | 6 inch (150 mm) | ||
