Q6920 CleanerTM Roller machines are self contained, robustly built and designed for the economical and efficient surface treatment of H beams and profiles.
1. Self contained, fully equipped shot blast machine
2. Solid manganese rolls in blast compartment
3. Tested and proven WildblastTM blast wheels
4.Automatic abrasive removal system
5. Automatic PLC control
6. Installed without the need for further exhaust ducting
7. Quick turnaround, easy assembly and commissioning
8. High life time by use of S-WindTM air separator.
The systems can be used as single machines or integrated into descaling and anti-corrosion treatment lines.
| Type | Q698 | Q6915 | Q6920 | Q6930 | Q6940 |
| Machine Entrance Width | 600 mm | 1500 mm | 2000 mm | 3000 mm | 5000 mm |
| Machine Entrance Height | 550 mm | 550 mm | 550 mm | 800 mm | 800 mm |
| Wheels*Power | 4*7.5 kw | 4*11 kw | 4*15 kw | 6*15 kw | 8*15 kw |
| Upper Edge Roller Conveyor (variable) | 1000 mm | 1100 mm | 950 mm | 950 mm | 950 mm |
| Work Speed | 1-4 m/min | ||||

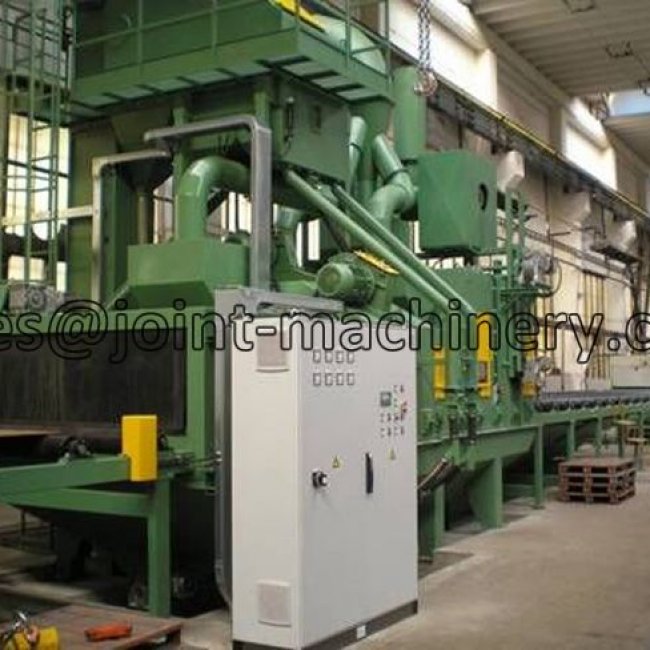

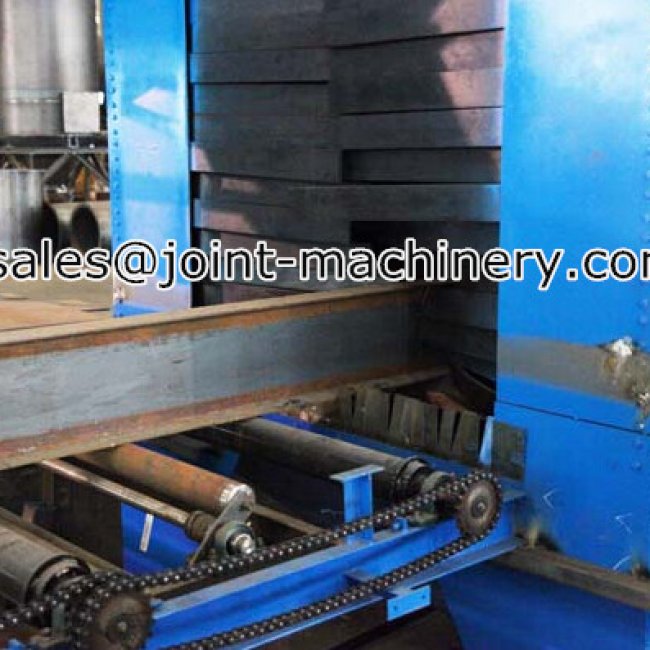

H beam shot blasting machine
As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
