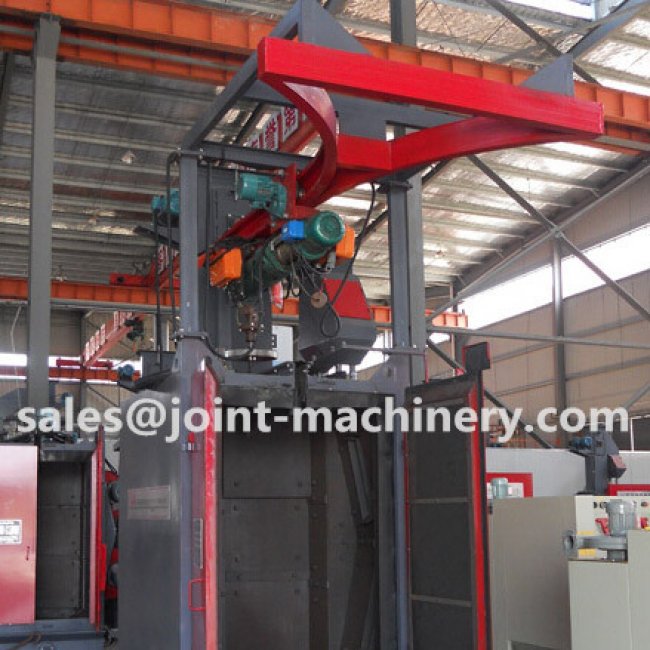

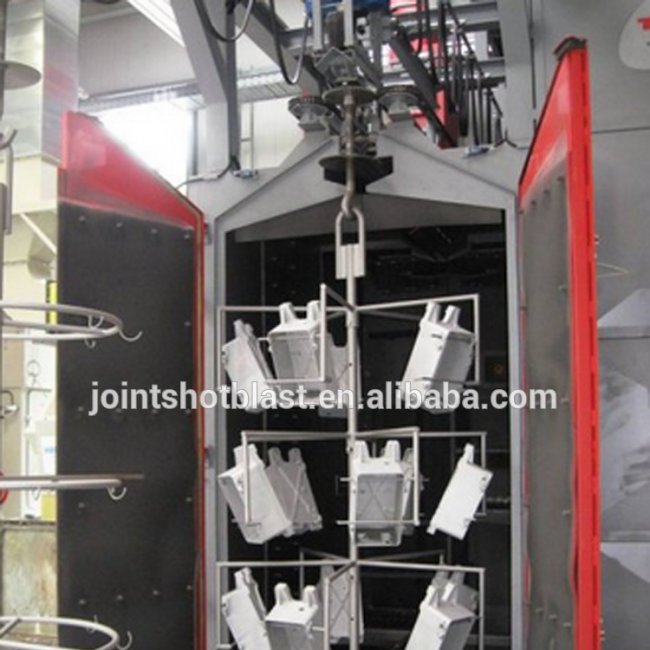

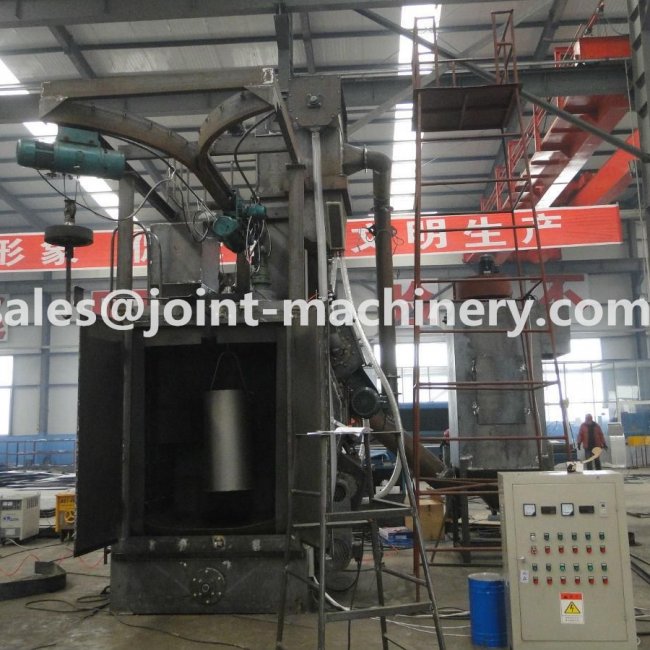

(hook type shot blasting machine )Application Possibilities
- The most difficult and complex fragile / irregularly shaped parts (medium or large parts).
- Cleaning and deburring castings, welded structures and other parts.
- Unequalled productivity and effectiveness.
- Reliability, longevity and progressive engineering.
- Compact form, installation without foundation pit.
- Complicated parts that are damageable can be cleaned thoroughly.
Technical Data
Type Q376 Q3710 Q3720 Q3730
Max. Dimensions of Workpiece m 0.6*1.1 1.2*1.8 1.4*2.2 1.6*2.3
Max. Loading Weight Per Hook kg 600 1000 2000 3000
Shot Volume Kg/min 2*120 2*250 3*250 3*250
Elevating Capacity t/h 15 30 45 45
Power kw 19.00 39.65 61.27 64.40
As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
