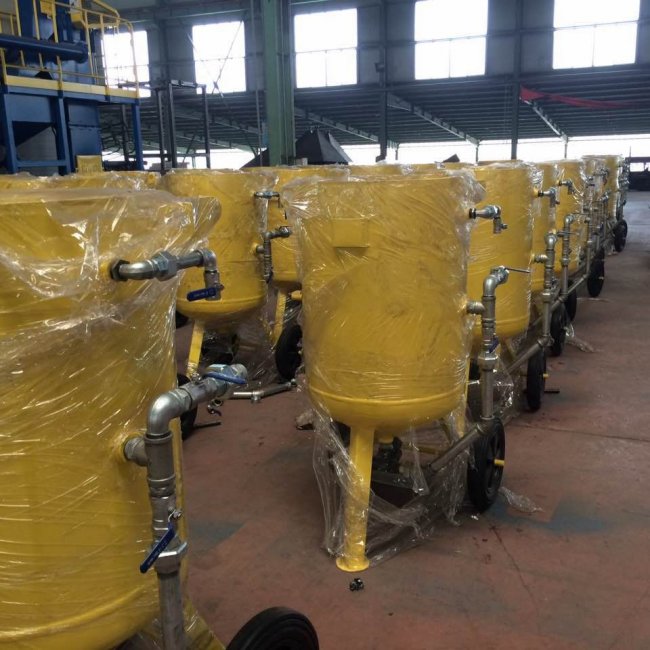

- Portable sandblasting machine(dry sandblasting pot) is easy for operation and transportation.
Technical Data
Type Q005 Q010 Q020 Q030 Q040 Q050 Q060 Q070
Pot Volume m3 0.1 0.2 0.3 0.4 0.5 0.6 0.8 1.0
Air Pressure MPa 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Air Consumption m3/min 1.5 2.0 3.5 4.1 5.1 5.1 5.1 5.1(1 gun)
Weight kg 90 120 180 230 280 360 500 680
Spare Parts
Joint Group manufactures high quality parts of portable sandblasting machines(dry sandblasting pot).
Find more detailed information about the offerings of portable sandblasting machine parts below.
Nozzles of portable sandblasting machine
Material: boron carbide, tungsten carbide, carbon steel, aluminium, rubber and plastic.
Dimensions: ID 5-12 mm, length 100-280 mm.
Hose of portable sandblasting machine
O.D: 1/2"-2-1/2" (24-83 mm)
W.P: 7-15 bar
Hose lining: NR, SBR, BR blend
Reinforcement layer: tire cord with helix wire
Cover rubber layer: SBR
Temperature: -30°C + 80°C
Other parts of portable sandblasting machine
We also offer high quality abrasive, sandblasting gun, garment and cap for portable sandblasting machine.
As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
